LOGICAP LCM-1 series is a handheld cap tightening machine. It is a next step from hand capping to improve production output and prevent hand RSI injuries.
It is a very versatile machine that can handle a large variety of cap and bottle sizes and shapes. Hand placed caps are tightened using an air motor tool suspended on a spring balancer over the work area. Torque is adjustable to suit your capping requirements.
Suitable for Food, Pharmaceutical, Oil, Cosmetic or Chemical industries.
LCM-1 has been designed for easy installation.
Speed of the machine will depend on the dexterity of the operator
Contact us to discuss your application to see if this machine would be a great addition to your existing or a new production line.
LCM-1 FEATURES:
- Industry leading 3 year warranty
- High quality Japanese SHINANO Airmotor with adjustable torque
- Spring balancer
- Capping chuck (quick release) included
SPECIFICATIONS:
Cap sizes: 10mm - 130mm
Weight: 3 kg approx (tool and Spring balancer)
Compressed Air reqirement: 6-8 bar
LCM-1 Frame FEATURES:
- Stainless steel construction
- Roller slide trolley for Spring balancer
- 5m long coiled air hose
SPECIFICATIONS:
Length of swivel arm: 900 mmHeight of post: 1000 mmWeight: 6 kg approxBolted or clamped to work table

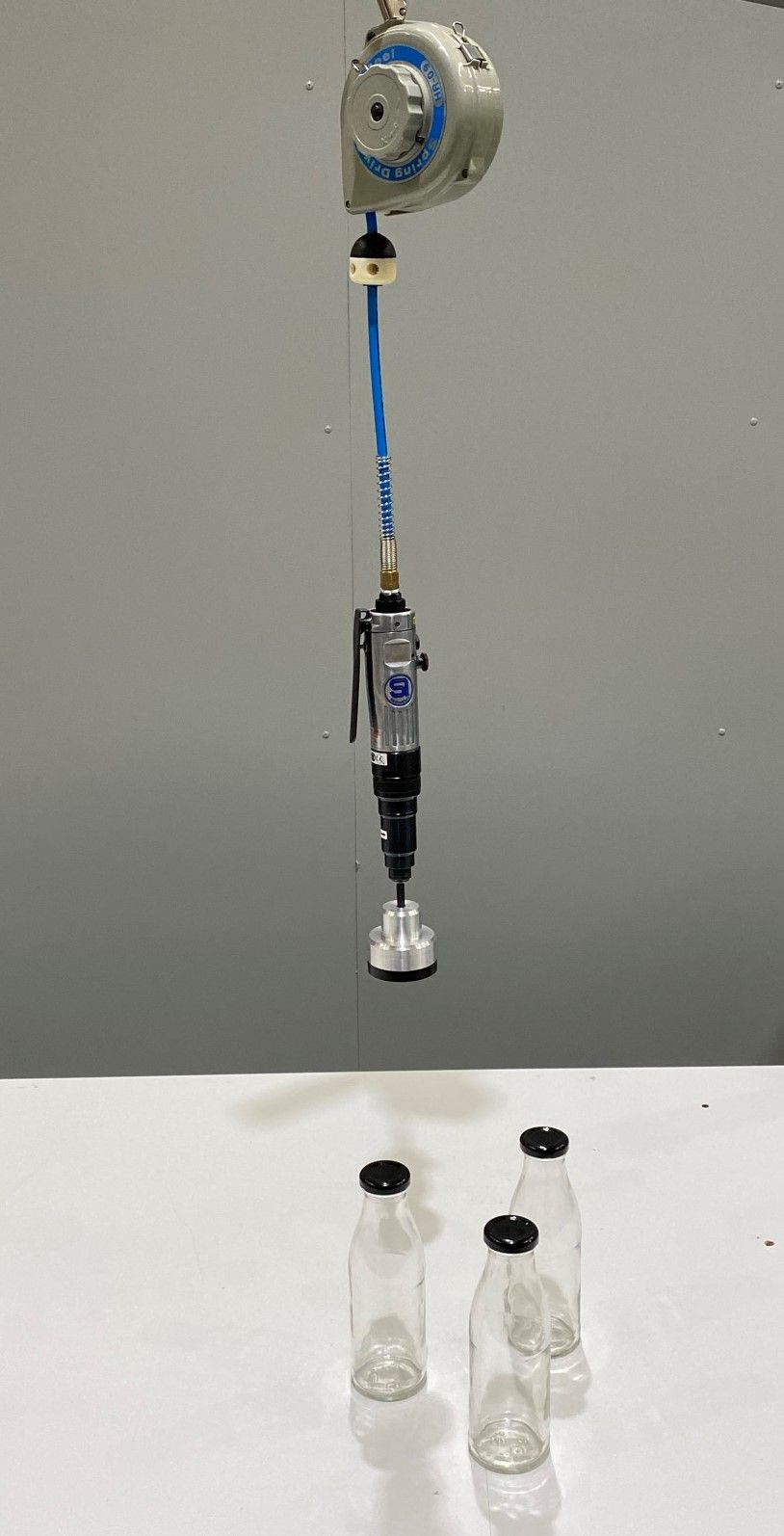

LCM-1 Handheld unit with chuck and spring balancer

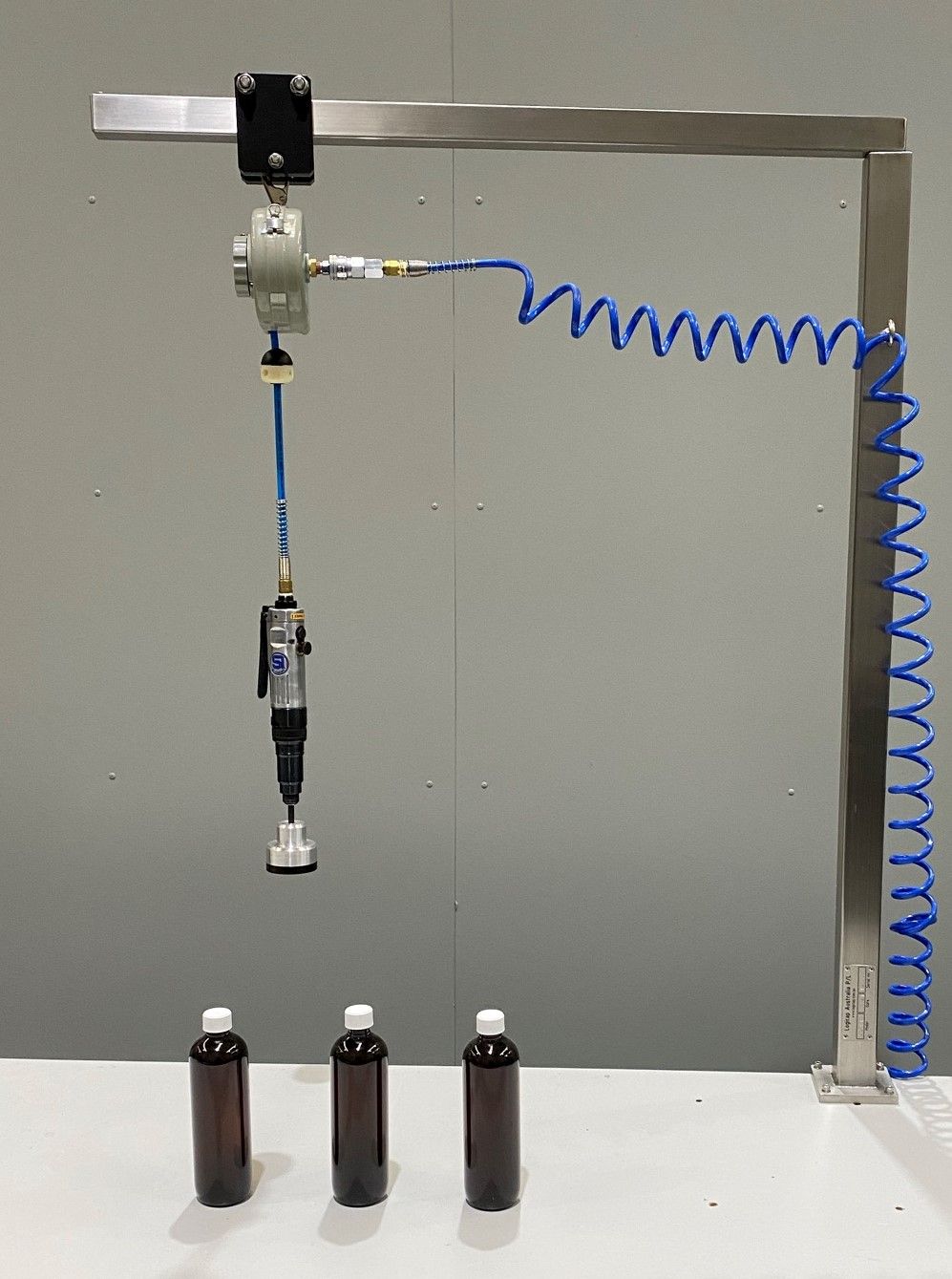

LCM-1 with optional support frame and swivel arm
